Sending Kafka Event Logs to DataSet through Fluentd

Introduction

Since the DataSet Kafka connector was introduced, we've gotten a lot of questions about configuring Fluentd to pipeline messages before storing them into a Kafka topic. I previously outlined the configuration steps for ingesting custom application logs to DataSet. A similar procedure is used to configure Fluentd to send Kafka messages to DataSet.

Install fluent-plugin-kafka

Run the following command to get fluent-plugin-kafka.

td-agent-gem install fluent-plugin-kafka

Set up Fluentd Config

It's worth mentioning that DataSet also has a Fluentd plugin and there's a separate blog post for configuring Fluentd message ingestion to DataSet. I am going to skip the prerequisites and only focus on the Fluentd configuration (for sending messages from Fluentd to Kafka).

Here is an example Fluentd configuration (ex. /etc/td-agent/td-agent.conf) that forwards messages from HTTP port 8888 on a local machine to a remote Kafka cluster.

<source>
  @type http
  port 8888
</source>


<filter scalyr.myapp.access>
   @type record_transformer
   <record>
   hostname "#{Socket.gethostname}"
   tag "myapp"
   </record>
</filter>


<match scalyr.myapp.access>
  @type kafka2
  # list of seed brokers
  brokers <BROKER2_IP>:9092,<BROKER2_IP>:9092
  use_event_time true

  # buffer settings
  <buffer topic>
    @type file
    path /var/log/td-agent/buffer/td
    flush_interval 3s
  </buffer>

  # data type settings
  <format>
    @type json
  </format>

  # topic settings
  topic_key topic
  default_topic log-messages

  # producer settings
  required_acks -1
  compression_codec gzip
</match>

A couple of key configurations in this file:

• Assigning tag "myapp" for matching Kafka Connect's custom_app_event_mapping which we will cover in the later section.
• The messages are forwarded to the remote Kafka cluster (ie.<BROKER2_IP>:9092,<BROKER2_IP>:9092).

Restart Fluentd to apply the new configuration.

Configure Kafka Connect DataSet Sink Mapping

Creating a new connect-scalyr-sink-custom-app.json file and specify the custom app event mapping based on the Fluentd message's structure.

{
  "name": "scalyr-sink-connector",
  "config": {
    "connector.class": "com.scalyr.integrations.kafka.ScalyrSinkConnector",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable":"false",
    "tasks.max": "1",
    "topics": "log-messages",
    "api_key": "<SCALYR_API_KEY>",
    "event_enrichment": "env=dev,parser=kafka",
    "custom_app_event_mapping":"[{\"matcher\": {\"attribute\": \"tag\", \"value\": \"myapp\"}, \"eventMapping\": {\"message\": \"message\", \"logfile\": \"path\", \"serverHost\": \"hostname\"}}]"}
}

Then, executing the following command to install the DataSet Sink Connector:

curl localhost:8083/connectors -X POST -H "Content-Type: application/json" -d @connect-scalyr-sink-custom-app.json

We are now ready to consume messages from Fluentd and all the messages will be stored in the "log-messages" Kafka topic.

Send an Event From Fluentd to Kafka

Submitting an HTTP request to send a JSON message to Fluentd.

curl  -XPOST
      -d 'json={"tag": "myapp", "message":"{\"msg\":\"test message from fluentd to kafka\"}", "path": "kafka.log"}'
      http://127.0.0.1:8888/scalyr.myapp.access

This message will be forwarded to the "log-messages" Kafka topic. You can confirm the message is available on the topic by running the consumer.sh script.

cd $KAFKA_HOME
bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic log-messages --from-beginning
....
....
{"tag":"myapp","hostname":"ip-172-31-26-145.us-west-2.compute.internal","message":"{\"msg\":\"test message from fluentd to kafka\"}","path":"kafka.log"}

This message will eventually be forwarded to DataSet because it matches with our custom app configuration tag=myapp.

View Logs at app.scalyr.com

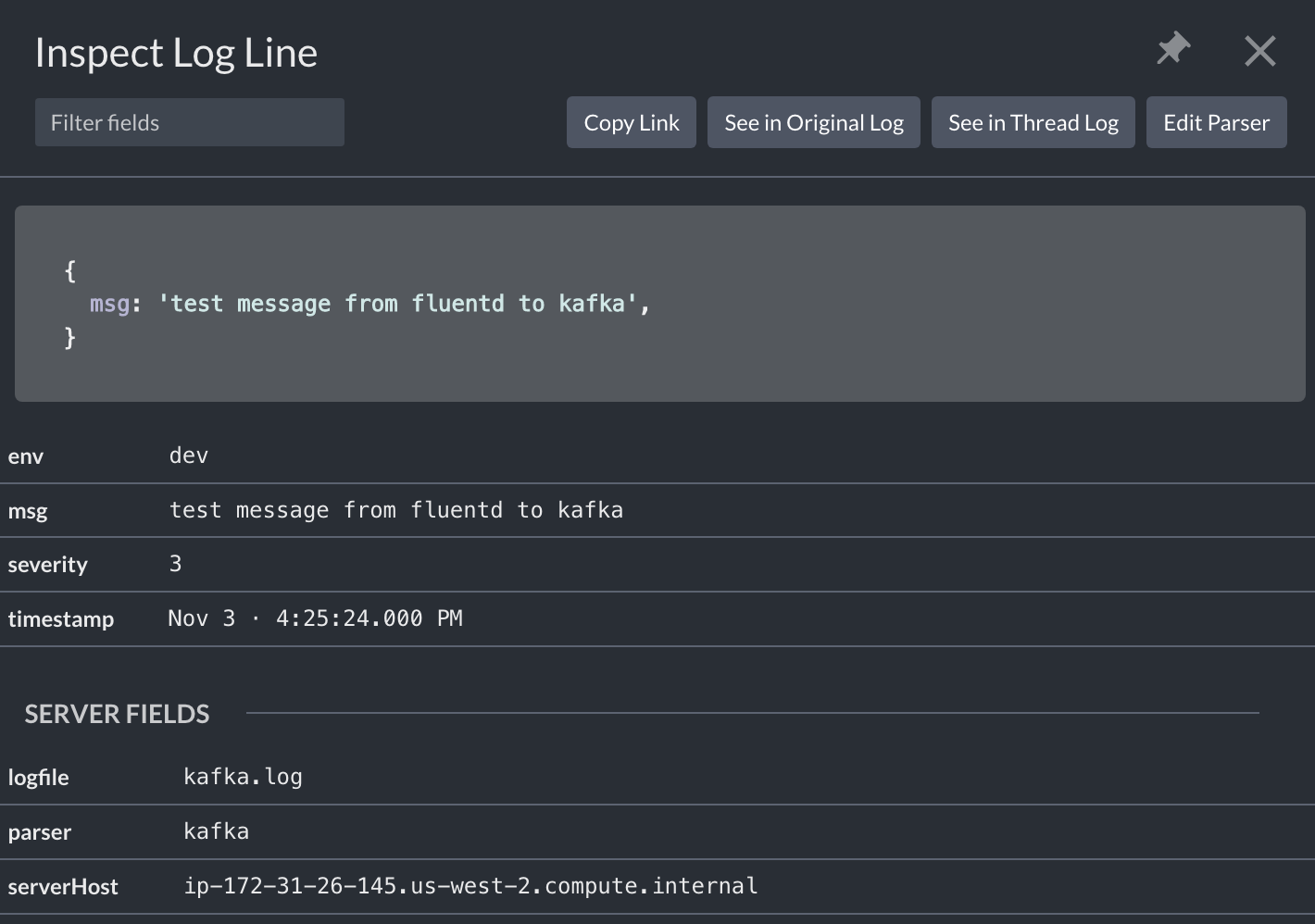

Finally, go to app.scalyr.com to verify that the message is successfully ingested to your account:
