Ingesting Elastic Filebeat Logs through Kafka Connect DataSet Sink (Standalone Mode)

Prerequisites

1. Install a Kafka cluster

2. Install Filebeat

3. Java 8+

Install Kafka Connect DataSet Sink

1. Clone the Kafka Connect DataSet repository.

git clone https://github.com/scalyr/kafka-connect-scalyr

2. Build the connector package to generate a zipped file scalyr-kafka-connect-scalyr-sink-<version>.zip in the "target/components/packages" directory (where <version> is the release version).

cd $KAFKA_CONNECT_SCALYR_HOME
mvn clean package

3. Unzipped the file to the Kafka connect plugin path directory (ex. /usr/local/share/kafka/plugins)

unzip scalyr-kafka-connect-scalyr-sink-<version>.zip -d /usr/local/share/kafka/plugins

4. Changing the parameter values for topic, scalyr_server, and api_key of the connector-scalyr-sink property file (i.e. etc/connector-scalyr-sink.properties). You might also want to change other parameters such as event_enrichment or tasks.max based on your own requirements.

Here is a sample configuration:

name=scalyr-sink
connector.class=com.scalyr.integrations.kafka.ScalyrSinkConnector
tasks.max=1
topics=logs
value.converter.schemas.enable=true
scalyr_server=https://app.scalyr.com
api_key=<Scalyr LOG WRITE API TOKEN>
event_enrichment=tag=kafkaConnect,env=dev
....

 5. Add the plugin path to the Kafka connect standalone property file (ex. $KAFKA_HOME/config/connect-standalone.properties). My environment uses "/usr/local/share/kafka/plugins", but it may vary, depending on your configuration:

plugin.path=/usr/local/share/kafka/plugins

6. Run the connector in standalone mode:

cd $KAFKA_HOME
bin/connect-standalone.sh config/connect-standalone.properties

Filebeat Configuration

1. Setup Filebeat as an input stream

Adding Filebeat input path (ex. /home/kafka/*.log) and the DataSet parser name (ex. kafka-logs) for processing Filebeat logs.

#=========================== Filebeat inputs =============================

filebeat.inputs:

- type: log
  enabled: true
  paths:
    - /home/kafka/*.log
  fields:
    parser: 'kafka-logs'

2. Setup Kafka as an output stream

#-------------------------- Kafka output ------------------------------

output.kafka:
  hosts: ["localhost:9092"]
  topic: "logs"
  partition.round_robin:
    reachable_only: false

  required_acks: 1
  compression: gzip
  max_message_bytes: 1000000

3. Start Filebeat

sudo bin/filebeat -e -c /etc/filebeat/filebeat.yml

Logs Ingestion (Filebeat -> Kafka -> DataSet)

Appending a new line to the input file to produce a Filebeat message to the Kafka topic.

{"app": "filebeat_kafka_connect_demo", "msg": "this is a test message"}

This line is converted to a JSON message and sent to Kafka.

{"@timestamp":"2020-06-19T22:13:21.992Z","@metadata":{"beat":"filebeat","type":"_doc","version":"7.7.1"},"message":"{\"app\": \"filebeat_kafka_connect_demo\", \"msg\": \"this is a test message\"}","input":{"type":"log"},"fields":{"parser":"kafka-logs"},"ecs":{"version":"1.5.0"},"host":{"name":"ip-172-31-21-36","ip":["172.31.21.36","fe80::f4:fdff:fecc:c660"],"mac":["02:f4:fd:cc:c6:60"],"hostname":"ip-172-31-21-36","architecture":"x86_64","os":{"platform":"ubuntu","version":"18.04.4 LTS (Bionic Beaver)","family":"debian","name":"Ubuntu","kernel":"4.15.0-1065-aws","codename":"bionic"},"id":"a5d5aa87c541449fa22351448e488767","containerized":false},"agent":{"ephemeral_id":"db6f1a58-531b-46b4-b401-398c73c8c728","hostname":"ip-172-31-21-36","id":"fd2a76eb-6fea-4dfd-8462-188e3ce81f88","version":"7.7.1","type":"filebeat"},"cloud":{"account":{"id":"630972250024"},"image":{"id":"ami-003634241a8fcdec0"},"provider":"aws","instance":{"id":"i-01c38a174d12975ed"},"machine":{"type":"t2.medium"},"region":"us-west-2","availability_zone":"us-west-2b"},"log":{"file":{"path":"/home/kafka/kafka.log"},"offset":144}}

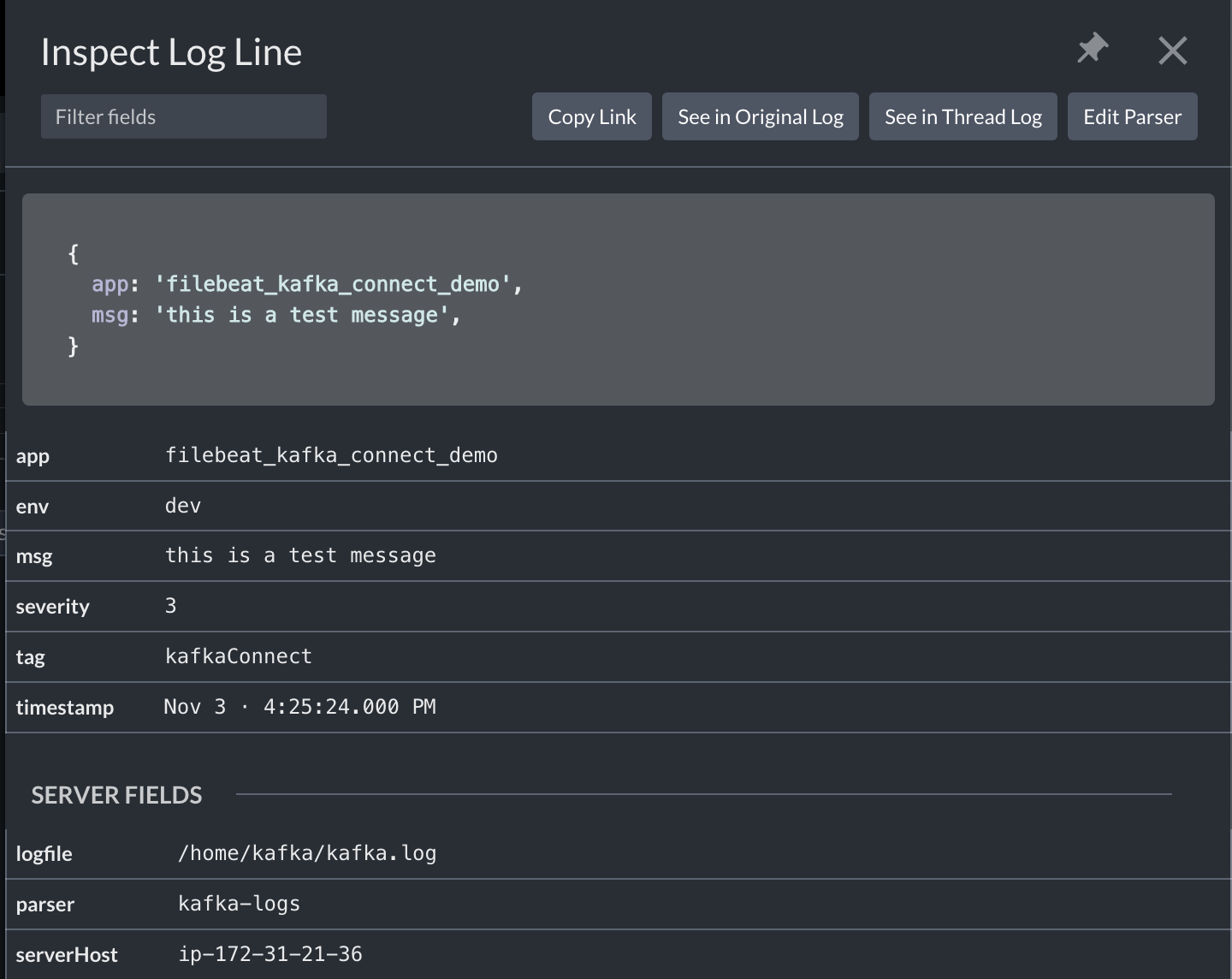

Finally, you can go to app.scalyr.com to verify that the log is successfully ingested:
